Semantic Multiplexing Gain in Wireless Systems via Expanded Embeddings: A BERT Case Study

Code, stored results, and supplementary material for the IEEE Communications Letters submission by Ki-Ho Lee, Hyun-Ho Choi, and Jung-Ryun Lee.

Multiple users share one expanded embedding block of dimension d_s = K * d_b: each user's frozen BERT sentence embedding is projected into the shared space, superimposed through learnable masks, and demultiplexed by user-wise attention. All reported transceivers are trained with SNR-aware MAML; the training without MAML of the earlier JSAC paper is included as a prior-art reference.

Files

File	Purpose
bert_semcom.py	Shared library: BERT extractor, transceiver model, channel, MAML helpers
cl_experiments.py	Held-out split, joint-trained configurations, ToDMA token-domain benchmark, linear probe, latency
cl_maml_all.py	SNR-aware MAML training for every reported configuration (including the conventional orthogonal scheme)
cl_maml_extra.py	MAML K sweep (K = 1, 2, 8) and DistilBERT replication
replot_cl.py	Regenerates Figs. 2 and 3 of the letter from the stored JSON results
probe_vs_cosine.py	Supplementary probe-accuracy-versus-cosine-similarity analysis
fig_cl/*.json, fig_cl/*.csv	Stored raw results behind every figure and quoted number

Reproducing

Requirements: Python 3.10+, PyTorch (CUDA), transformers, datasets, matplotlib, numpy. AG News loads from the Hugging Face hub (fancyzhx/ag_news fallback included).

python cl_experiments.py --save-dir fig_cl   # joint runs + ToDMA benchmark (~3 h on a laptop GPU)
python cl_maml_all.py    --save-dir fig_cl   # MAML runs (~9 h)
python cl_maml_extra.py  --save-dir fig_cl   # MAML K sweep + DistilBERT (~6 h)
python replot_cl.py                          # Figs. 2 and 3 from stored results
python probe_vs_cosine.py                    # supplementary analysis below

All experiments fix their random seeds (training seed 42, evaluation seed 123, ToDMA seed 7) and evaluate on a held-out test split of 2,000 AG News sentences disjoint from the 8,000-sentence training pool. replot_cl.py and probe_vs_cosine.py read only the stored results, so every figure is regenerable without rerunning the experiments.

Figures of the letter

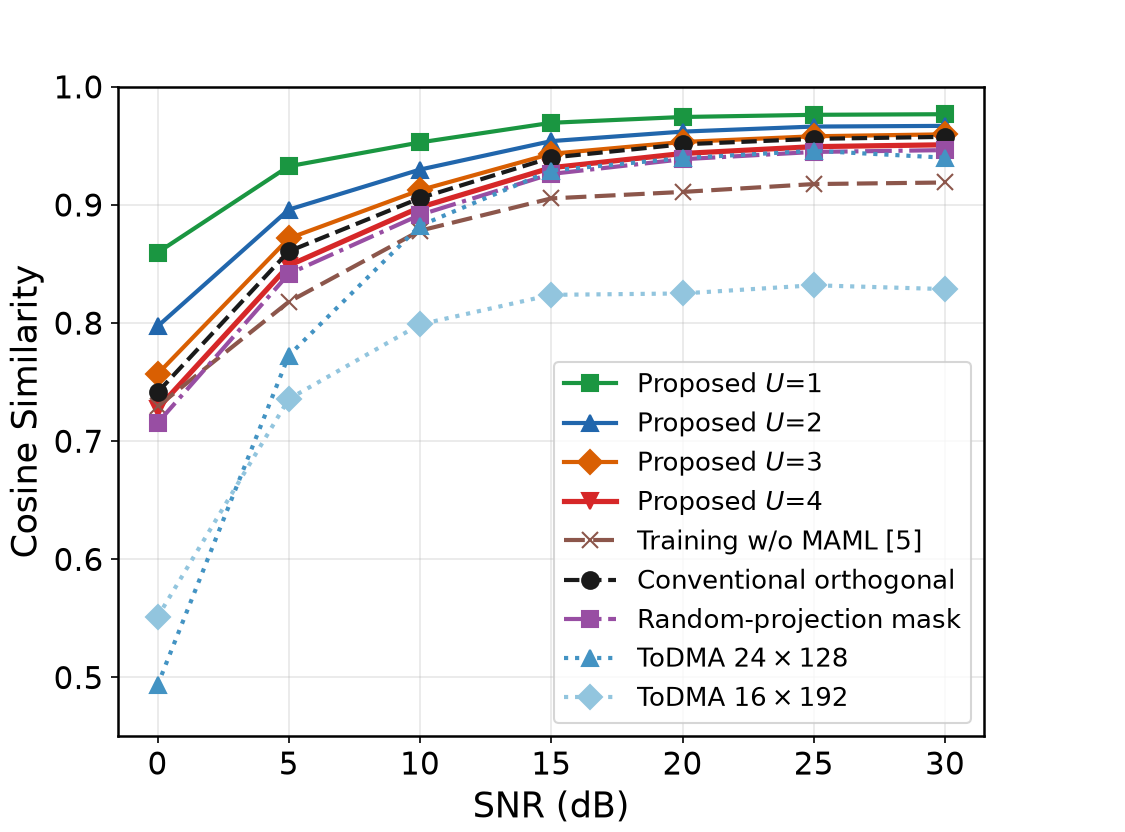

Fig. 2 - per-user cosine similarity vs. SNR (proposed scheme for U = 1..4 at K = 4, the conventional orthogonal scheme, the matched-budget schemes, and the joint training of the earlier JSAC paper, all on the held-out test set):

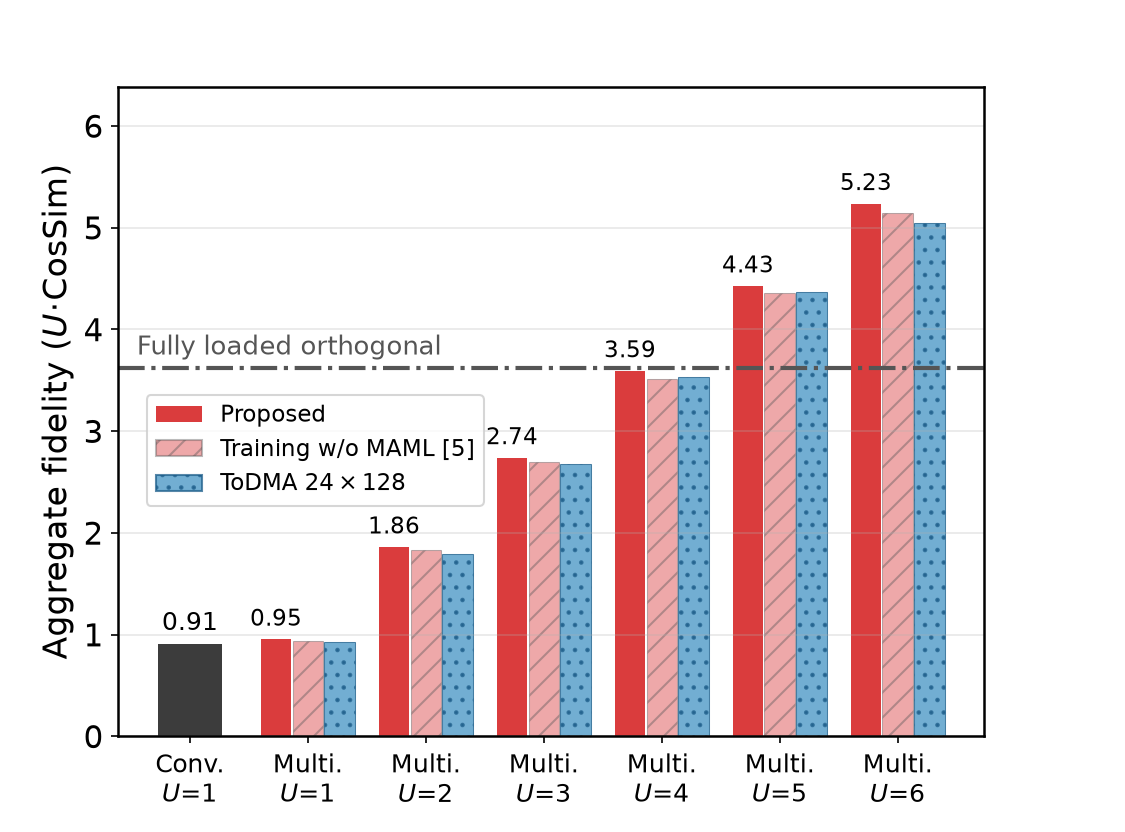

Fig. 3 - aggregate fidelity across load (SNR-aware MAML vs. joint training at 20 dB, with the fully loaded orthogonal reference):

Supplementary: probe accuracy vs. cosine similarity

The letter measures semantic fidelity by the cosine similarity of the recovered embeddings and corroborates it with a downstream perception metric: the AG News topic accuracy of a linear probe trained on clean training-pool embeddings and applied to the recovered test embeddings (clean reference about 0.855, sampling error about +/-0.01).

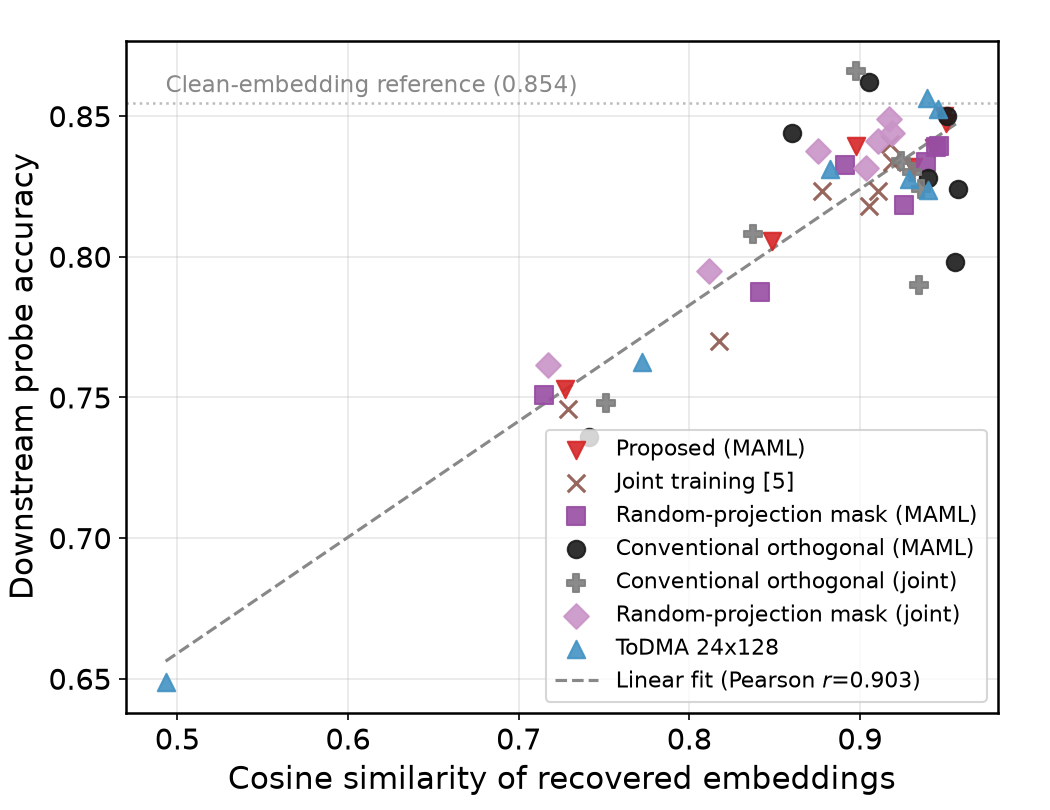

Across 7 schemes x 7 SNRs (49 operating points), probe accuracy tracks cosine similarity with a Pearson correlation of r = 0.903:

Two readings follow. First, the low-SNR advantage of the analog embedding schemes over the token-domain scheme appears in both metrics (for example 0.848 vs. 0.772 in CosSim and 0.805 vs. 0.762 in accuracy at 5 dB). Second, schemes within about 0.01 of each other in CosSim differ in accuracy only on the order of the sampling error, so the cosine metric used throughout the letter is consistent with downstream perception on this task.
